Jagram Brompton Tiled Pavilion Gazebo

The Jagram Brompton pavilion with tiled felt roof is constructed from top quality timber and makes a wonderful space for gatherings.

The sides are open and balustraded which create an open and airy feel inside. Tongue & groove cladding is used for the rear of this amazing structure. All Jagram buildings are crafted from Spruce softwood with all timber used treated with the highest quality wood preservative. The spruce softwood is responsibly sourced. There is also a 10 year guarantee which protects against attacks from decaying, weathering and even insect attacks (providing the gazebo is erected and looked after properly)

This Jagram Brompton Tiled Pavilion Gazebo is available with two different colours of tile: green or black. The tiles create an elegant look but also has a practicality factor use to provide added protection from the weather. Benches, seat cushions and flooring are also available to add to this impressive structure by choosing from the options above.

Note: Pictures of floor and furniture are for demonstration and do not come as standard, must be selected from the options above.

Key Features

• Large Size Pavilion Gazebo For Gatherings and Enjoying Outdoors
• Open Sides with Balustrade Sides
• All Spruce Softwood Ethically and Responsibly Sourced

• Each Manufactured To Specific Order By Specialists

• Tongue & Groove Cladding Creates Excellent Build Quality
• Also Supplied in a Natural Timber Finish
• Pressure Treated Throughout To Help For Long Life

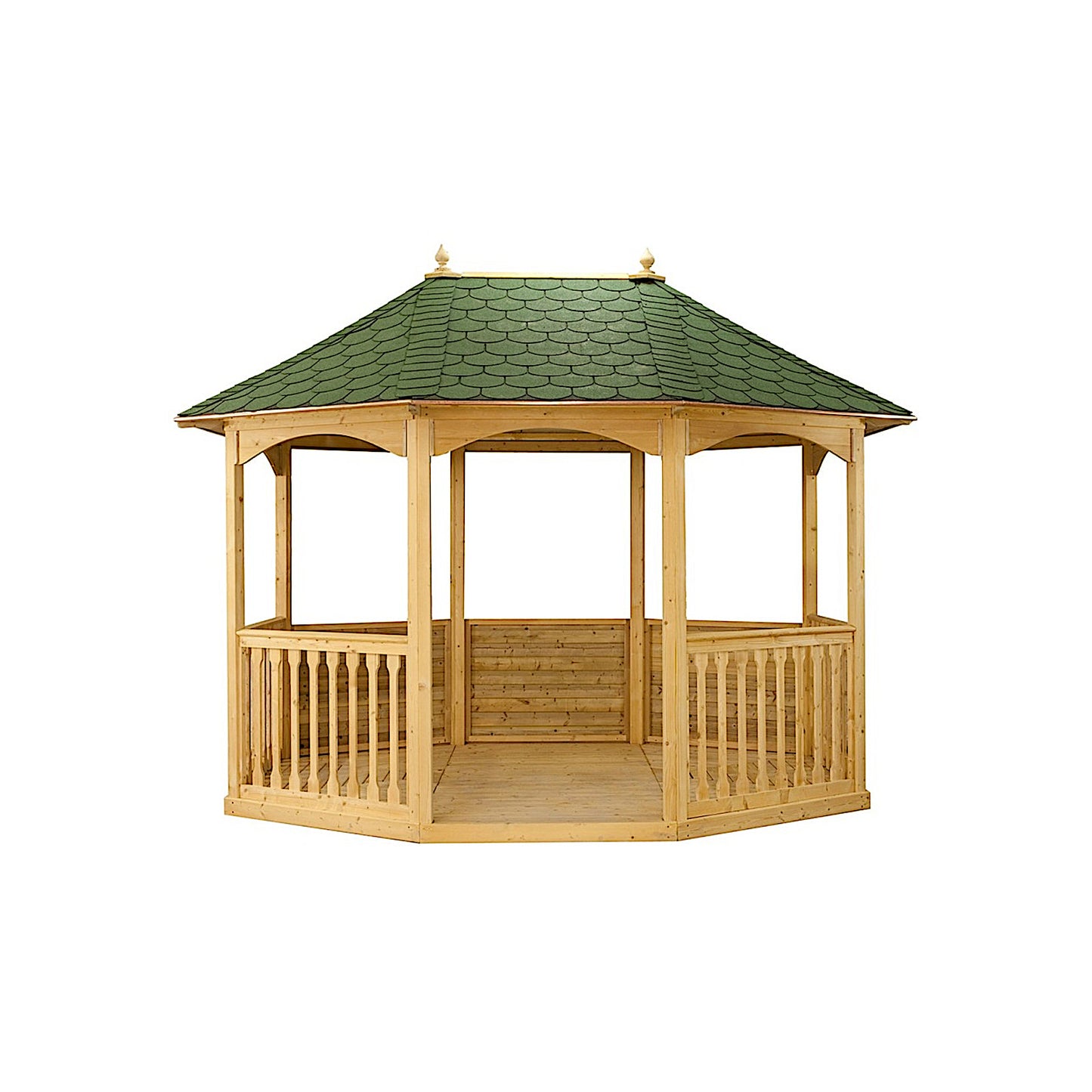

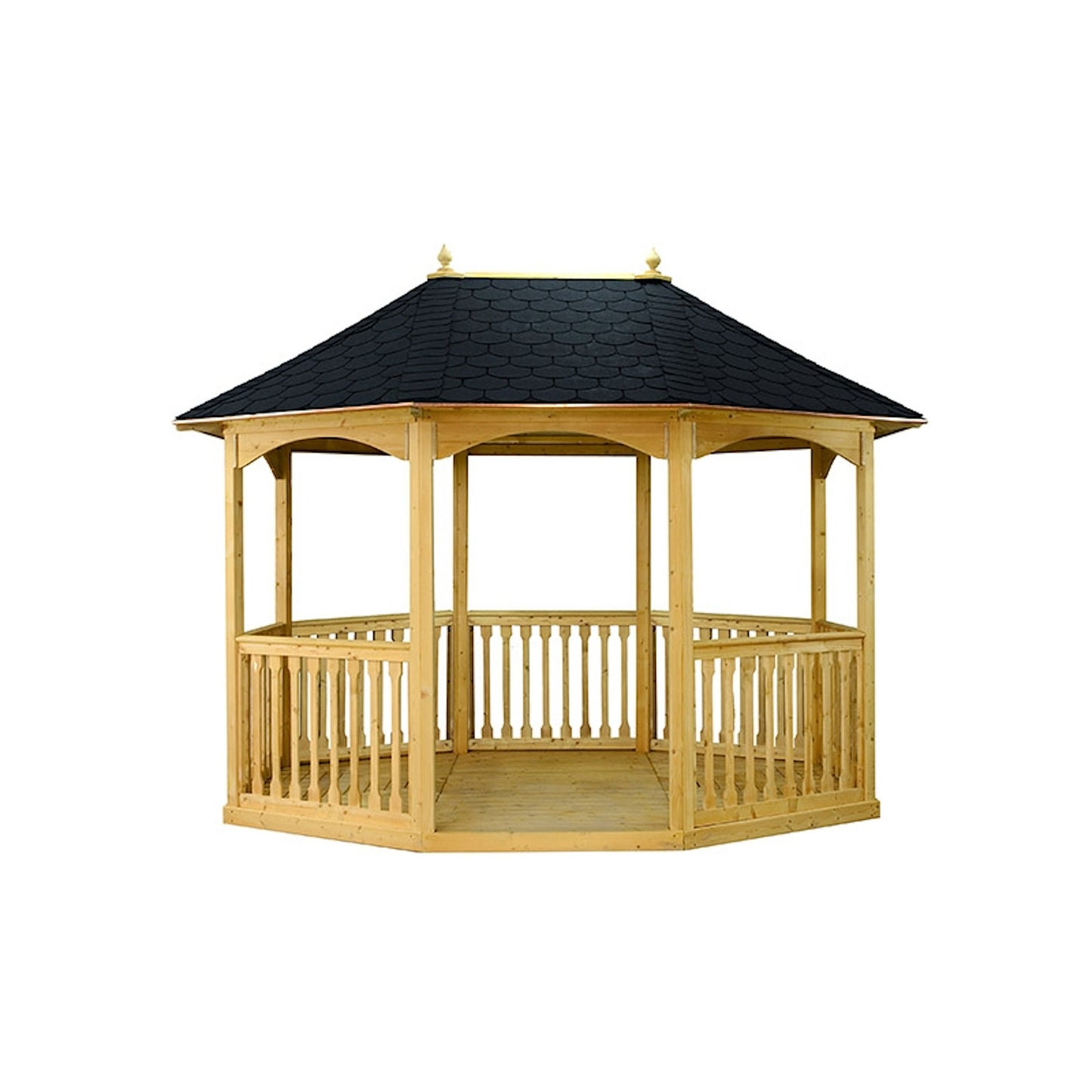

• Roof Felt Tiles in a Choice of Black or Green INCLUDED
• 10-Year Manufacturer's Anti-Rot Guarantee INCLUDED
• Floor, benches and canvas sides optional additions available above.

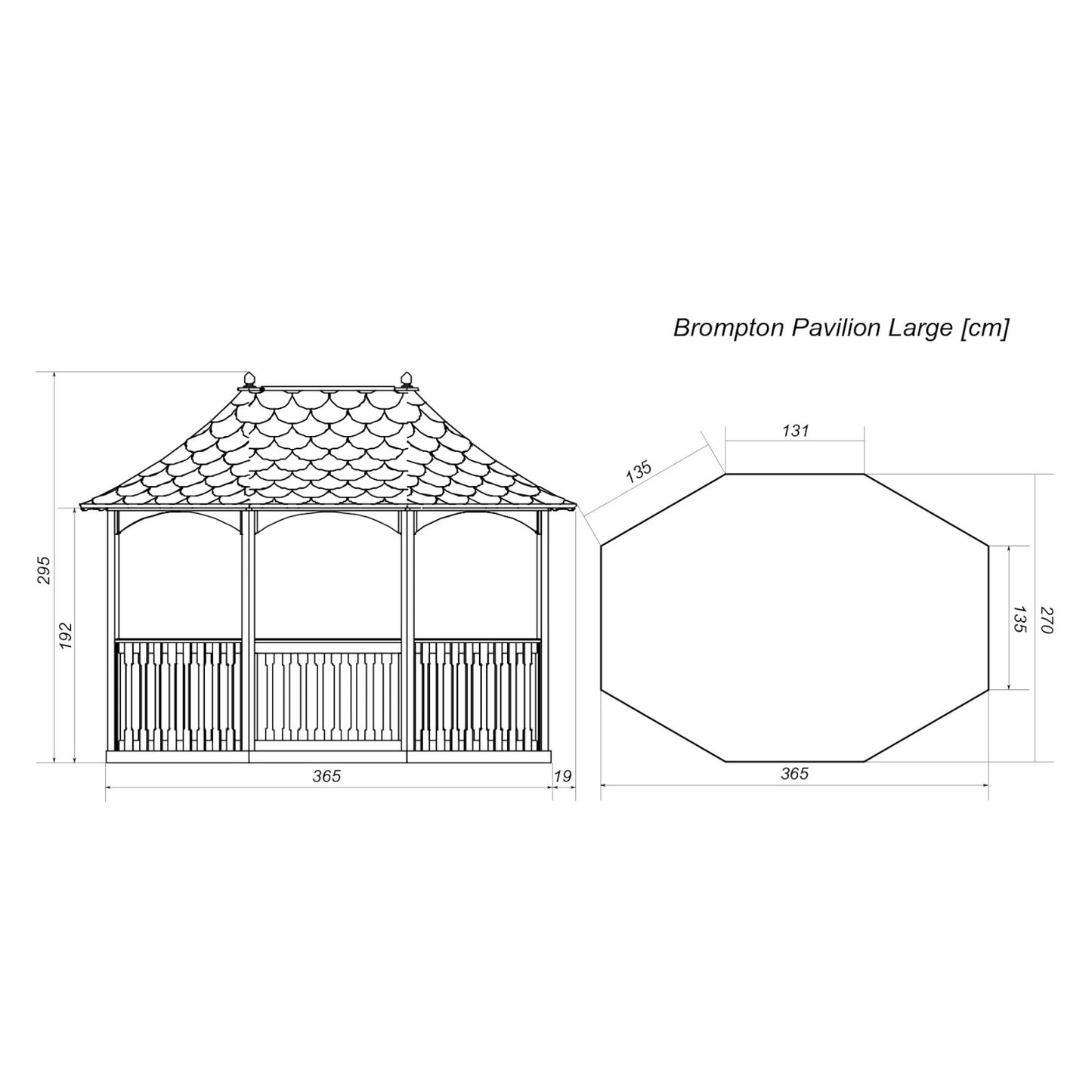

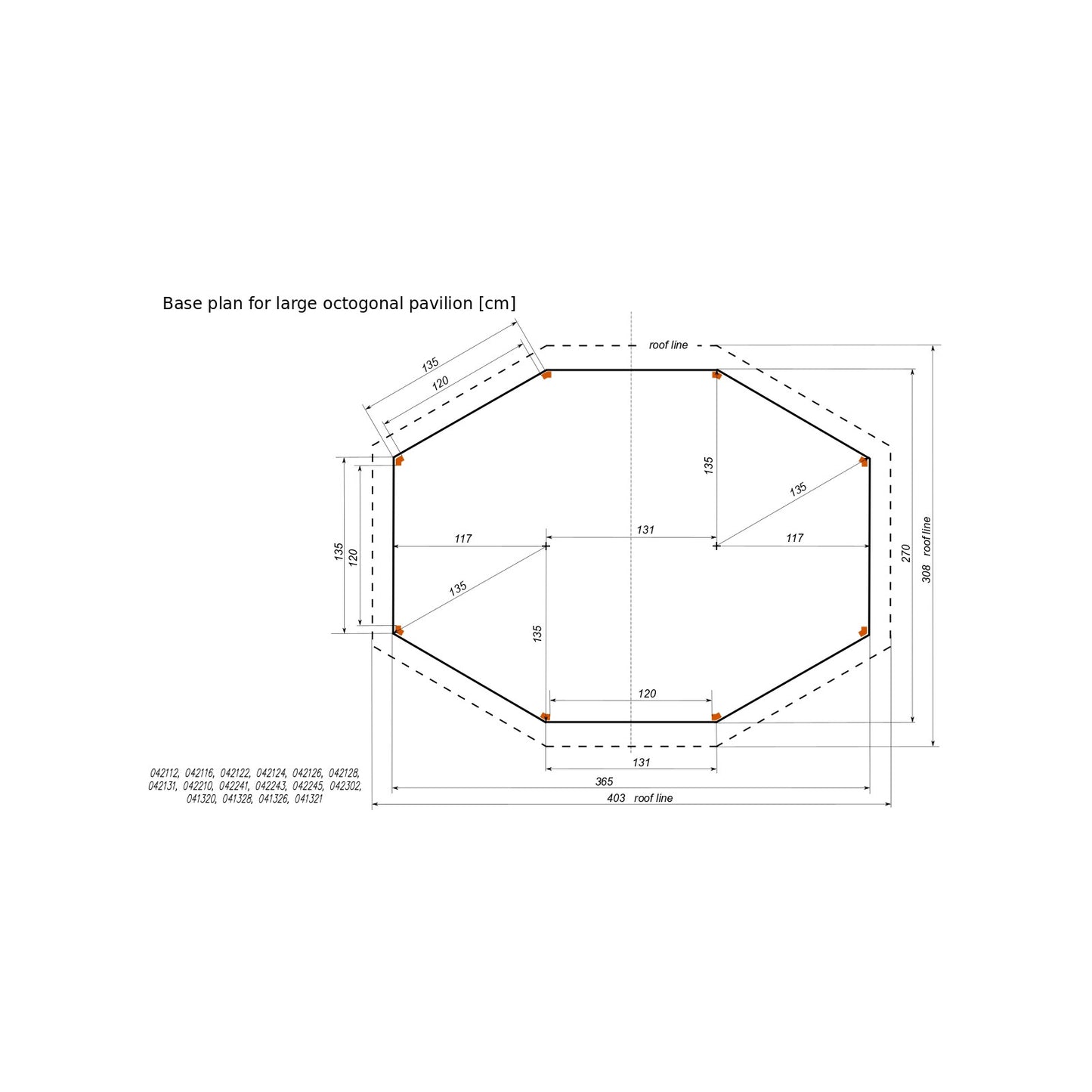

Dimensions

• Width: 365cm (12ft)
• Depth: 270cm (8ft 10ins)
• Eaves Height: 192cm (6ft 4ins)
• Ridge Height: 295cm (9ft 8ins)
• Internal Width: 350cm (11ft 6ins)
• Internal Depth: 256cm (8ft 5ins)
• Floor Thickness: 85mm (3½ins) (20mm floor boards + 65mm floor joist)
• Roof Thickness: 16mm (¾ins)

Downloads

Jagram Brompton Tiled Pavilion Gazebo Instructions
